What is the strength of the electric field at the position indicated by the dot in (figure 1)

Looking answer for What is the strength of the electric field at the position indicated by the dot in (figure 1)? You're at the right place. Here you will get the 100% correct solution. Bookmark this blog for all future references.

What is the strength of the electric field at the position indicated by the dot in (figure 1)



1.) What is the strength of the electric field at the position indicated by the dot in (Figure 1)?

Express your answer in newtons per coulomb.

2.) What is the direction of the electric field at the position indicated by the dot in the figure? Specify the direction as an angle above the horizontal line.

Express your answer in degrees.

+ 1.0 nC 5.0 cm 5.0 cm 5.0 cm 1.0 nC


What is the strength of the electric field at the position indicated by the dot in figure 1?

What is the direction of the electric field at the position indicated by the dot in the figure? Specify the direction as an angle above the horizontal line.


Answers - 1

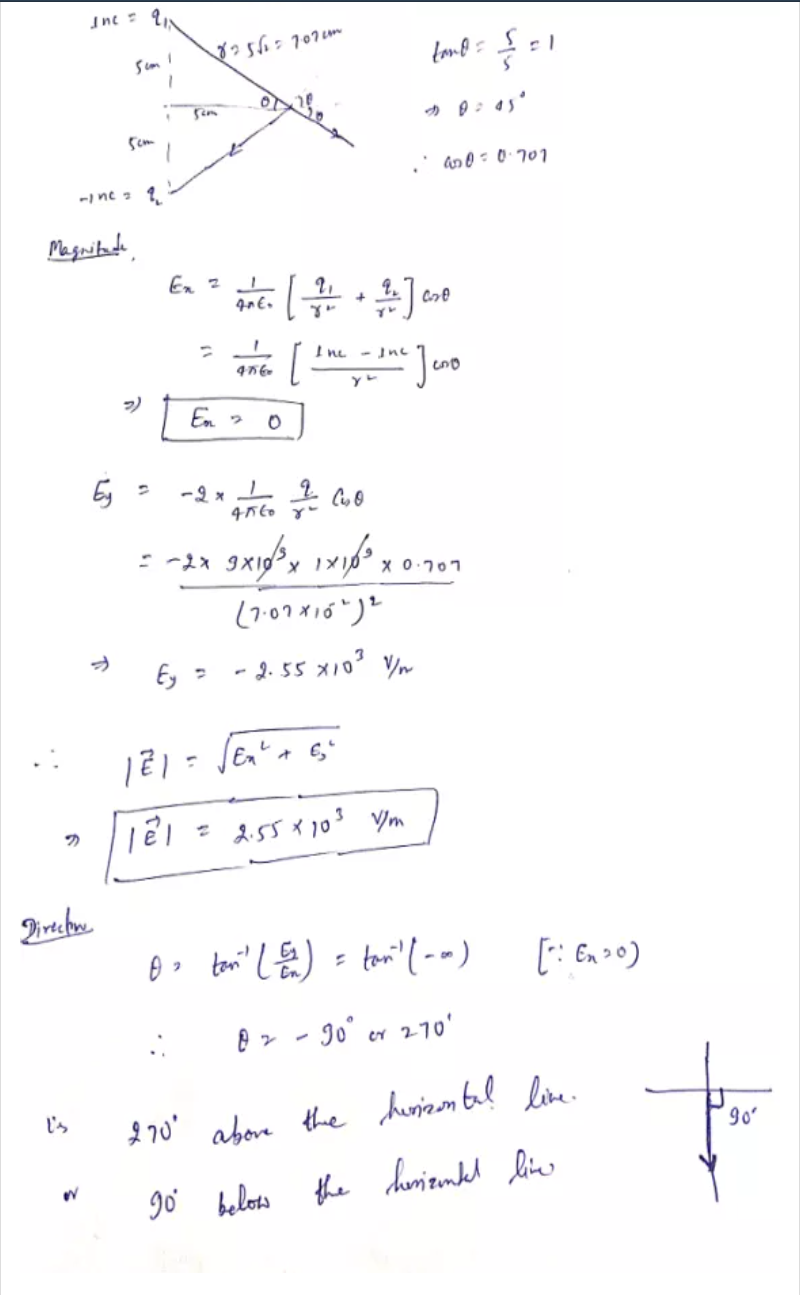

Since the charges are at equal distances and both are positive, they will repel with the same magnitude. If you draw the forces, then they will cancel out the y component of the final field. There will only be the x component. And since they are the same, then the final electric field will be twice the x component of one electric field of a charge.

E=kq/r^2

r= 5 x root2 = 7.07 cm or .0707 m (property of 45-45-90 right triangle)

E=(9 x 10^9)(1 x 10^-9)/(.0707)^2

= 1800.5 N/C

Now to find the x component,

cos 45 = x/1800.5

x= 1273.18 N/C

Now just multiply by 2 to accommodate both charges,

E=2546.35 N/C in direction of 0 degrees (no y component since they cancel each other out)
